• Wheels, 6 - 16" x 6.5" (40.6 cm x 16.5 cm) 8-lug painted steel, heavy duty (Only available with (R05) dual rear wheel configuration)
• Tires, front LT225/75R16E all-season, blackwall (Requires (R05) dual rear wheel configuration.) Jack and spare tire equipment bracket are not included.
• Tires, rear LT225/75R16E all-season, blackwall (Requires (R05) dual rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, dual (Standard on the TG33803 and TG33903 models. Available on the TG33503 model with (9N2) 10,050 lbs. (4559 kg.) GVWR or (C7N) 12,300 lbs. (5579 kg.) GVWR. Not available with (C4M) 9900 lbs. (4490 kg) GVWR or (JFF) 10,100 lbs. (4581 kg) GVWR.)
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Flasher, heavy duty light emitting diode (LED), formerly known as SEO (8H9)
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers (Not available with (UM7) AM/FM stereo, (U1C) AM/FM stereo with CD player, (US8) AM/FM stereo with CD/MP3 player, (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation or (UL5) radio delete.)

• Seating arrangement, driver and front passenger highback bucket includes head restraints and vinyl or cloth trim
• Air conditioning, single-zone manual
• Seats, front bucket with vinyl trim and outboard head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats.)
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Heater and defogger with front and side window defoggers
• Defogger, side windows
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, interior with dome light and door handle-activated switches

• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Not available with (ZX1) driver only high-back bucket seat. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger-side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)

ENGINE, VORTEC 6.0L V8

• (324 hp [241.6 kW] @ 4700 rpm
• 373 lb-ft of torque [503.6 N-m] @ 4400 rpm)

• Preferred Equipment Group 1WT
• 3.73 Rear Axle Ratio
• Heavy-Duty Rear Locking Differential
• 16" x 6.5" 8-Lug Painted Steel Wheels
• Dual Rear Wheel Configuration
• Reclining High-Back Bucket Seats
• Reclining High-Back Bucket Seats w/Inboard Armrests
• Vinyl Seat Trim
• Driver & Front Passenger High-Back Bucket Seats
• Driver-Side Only Frontal Airbag
• AM/FM Stereo w/Digital Clock
• Convenience Package
• Manual Day/Night Inside Rear-View Mirror
• Wide-Stance Sail Panel Mounted Outside Mirrors
• Body Soft-Mount Donut & Bolt
• Cruise Control
• Tilt Steering Wheel
• 4-Wheel Disc Brakes
• Driver's Seat Mounted Armrest
• Dual rear wheels
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Power steering
• Passenger seat mounted armrest
• Passenger door bin
• Passenger cancellable airbag
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Front Bucket Seats
• Air Conditioning

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Total Cooling System Capacity (qts): 13.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 8600
• Curb Weight - Front (lbs): 3077
• Curb Weight - Rear (lbs): 1891
• Gross Vehicle Weight Rating Cap (lbs): 10050
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 8600
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: XHF
• Rear Tire Order Code: YHF
• Front Tire Size: LT225/75R16E
• Rear Tire Size: LT225/75R16E
• Front Tire Capacity (lbs): 2335
• Rear Tire Capacity (lbs): 2150
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 3
• Turning Diameter - Curb to Curb (ft): 54.50
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 33
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 159.00
• Length, Overall w/o rear bumper (in): 266.70
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 82.90
• Overhang, Front (in): 39.70
• Front Bumper to Back of Cab (in): 98.70
• Cab to Axle (in): 100.00
• Cab to End of Frame (in): 168.50
• Ground to Top of Frame (in): 23.31
• Frame Width, Rear (in): 34.80
• Ground Clearance, Front (in): 7.60
• Ground Clearance, Rear (in): 7.00
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.20
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Summary

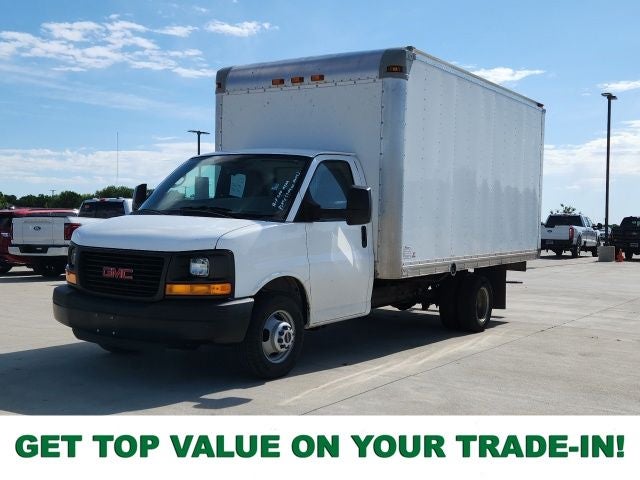

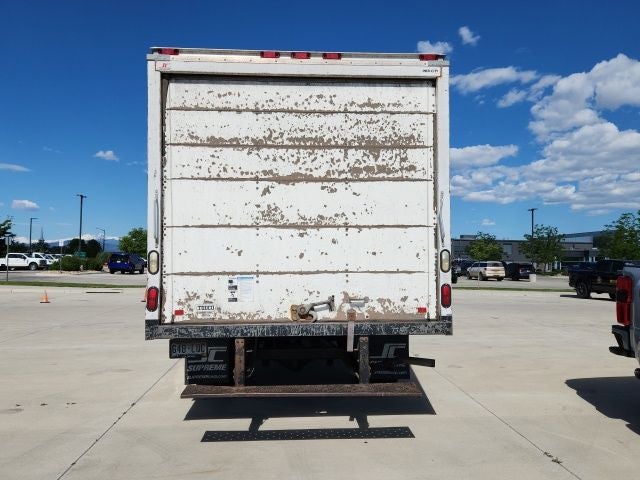

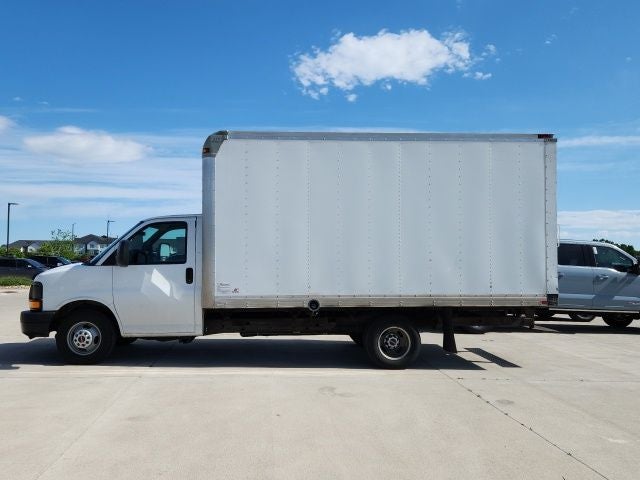

• Vehicle Name: GMC Savana Commercial Cutaway
• Body Style: 159.0" WB
• Body Code: ZW9
